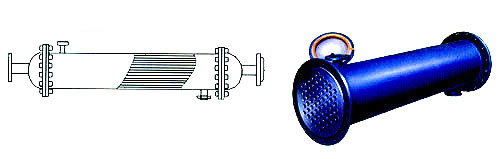

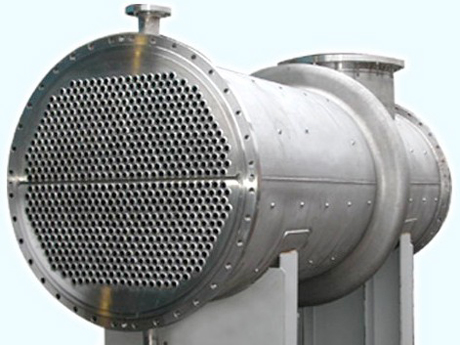

        我廠生產的列管冷凝器，按材質分為碳鋼列管冷凝、不銹鋼列管式冷凝器和碳鋼與不銹鋼混合列管式冷凝三種，按形式分為固定管板式、浮頭式、U型管式換熱器，按結構分為單管程、雙管程和多管程。傳熱面積0.5-500m²，可根據用戶需要定制。

公稱直徑	管程數	管子數量	換熱面積 公稱值/計算值					管程通道截面積 管程通道流速0.5m/sec時的流量m/hr		公稱壓力
			管子長度					φ25×2.5
			1500	2000	3000	4000	6000	φ25×2
159	1	14	1.5/1.62	22.17	33.27			0.0044/0.0049	7.92/8.82	0.25
219	1	26	3/3.00	4/4.02	6/6.06	8/8.1		0.0082/0.0090	14.76/16.20	0.6
	2	26	3/3.00	4/4.02	6/6.06	8/8.81		0.0041/0.0045	7.38/8.01	1.0
273	1	44	5/5.08	7/5.18	10/10.26	14/13.72	21/20.63	0.0138/0.0152	24.84/27.36	1.6
	2	40	5/4.62	6/6.19	9/9.33	12/12.47	19/18.76	0.0063/0.0069	11.24/12.42	2.5
325	1	60	7/6.93	9/9.28	14/14.00	19/18.71	28/28.13	0.0188/0.0208	33.84/37.44	0.6
	2	56	6/6.47	9/8.66	13/13.05	17/17.46	36/26.26	0.0088/0.0097	15.84/17.46	1.0
400	1	119	14/13.47	18/18.41	28/27.76	37/37.10	55/55.8	0.0374/0.0412	67.32/74.16	1.6
	2	110	13/12.70	17/17.02	26/25.66	34/34.20	50/51.58	0.0173/0.0190	31.14/34.20	2.5
500	1	185			45/4.15	55/57.68	85/86.74	0.0581/0.0641	104.58/115.38
	2	180			40/41.99	55/57.68	85/86.74	0.0283/0.0312	50.94/56.16
600	1	269			60/62.7	85/83.88	125/126.13	0.0845/0.0932	152.10/167.76
	2	266			60/32.05	80/82.94	125/14.72	0.0418/0.0461	75.24/83.98
700	1	379			90/88.41	120/118.17	175/177.71	0.0091/0.1313	214.38/236.34
	2	358			85/83.51	110/111.62	165/167.85	0.0562/0.0620	101.16/111.60
800	1	511			120/119.20	160/159.16	240/239.60	0.1605/0.1770	288.90/318.60
	2	488			115/113.83	150/152.16	230/228.81	0.0767/0.0845	138.06/152.10
900	1	649			150/151.39	200/202.36	305/304.3	0.2036/0.2248	367.02/404.46
	2	630			145/146.96	195/196.44	295/295.40	0.0990/0.1091	178.20/196.38
1000	1	805			185/187.78	250/251.00	375/377.45	0.2529/0.2788	455.22/501.74
	2	792			185/184.75	245/246.95	370/371.36	0.1244/0.1374	223.92/246.96
